New
HL3005F-3
(HY3005F-3)
HQ
LINEAR
VARIABLE
DC
POWER
SUPPLY
(latest
model)
Dual
colours
LED
display
(New)
Introducing
the
new
HL3005F-3
(HY3005F-3)
(New
Model)
HQ
LINEAR
VARIABLE
DC
POWER
SUPPLY.

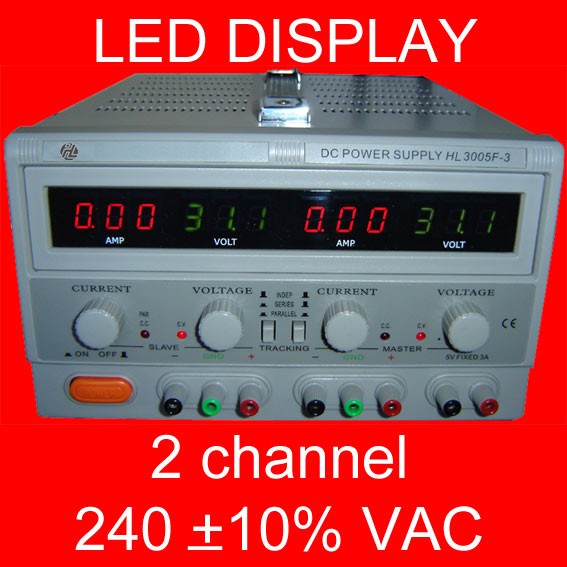

HL3005F-3(HY3005F-3)
HQ
TRIPLE
DC
POWER
SUPPLY
(Dual
30V
@5A,
Plus
a
Fixed
5V
3
ADC
O/P)
DIGITAL
LED
DISPLAY
METERS
DUAL
LINEAR
VARIABLE
VOLTAGE
&
CURRENT:
0
to
30
V
DC,
0
to
5
A
DC
1
FIXED
5
Volts
@
3
A
DC
This
triple
output
grounded
DC
power
supply
is
of
very
high
quality
construction.
Excellent
for
lab
use
with
the
two
variable
0-30
volt
0-5
amp
output
as
well
as
a
third
fixed
5
volt
3
amp
output.
Other
uses
include
science
projects
or
any
other
use
where
stable
voltage
up
to
30
volts
is
required.
For
the
two
variable
ouptputs
the
voltage
is
variable
from
0
to
30
volts
and
the
current
is
also
variable
from
0
to
5
amps.
The
unit
also
has
a
switch
to
choose
among
INDEPENDENT,
SERIES
or
PARALLEL
operations.
Technical
Specifications
*
Double
colour
Four
LED
Display
*
Output
Voltage:
2
Ch
@
0
-
30
Volts
*
Output
Current:
2
Ch
@
0
-
5
Amps
*
Output
Voltage
&
Current:
1
Fixed
at
5
Volts
+
3
Amps
*
Input
Voltage:
240
+/-10%
VAC
(50Hz)
(Australia
standard)
*
Constant
voltage/
Constant
Current
*
Voltage
and
Current
adjustment
*
Accuracy:
Voltage
1%
Current
1.5%
+2dgt
*
Power
effect:
CV<0.01%+2mV,
CC<0.2%
+
2mA
*
Overload
effect:
CV<0.01%
+3mV,
CC<0.2%
+3mA
*
Waves
and
noises:
CV<0.5mV
r.m.s,
CC
3mA,
r.m.s
*
Protection:
Current
limited
&
Short
circuit
protection.
*
Operating
Temperature
:
0
-
102
F
(
0
-40
C),
Relative
Humidity:
<90%
*
LCD
Accuracy
is
within
+
or
-
2%
*
Size:
365x265x164mm
*
Weight:
14.1kg
Box
includes:
