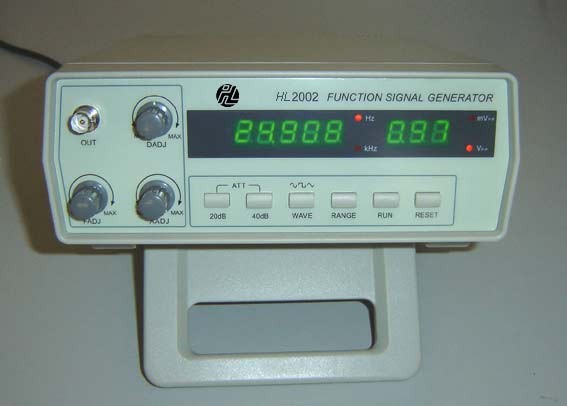

Function
Signal
Generator
Brand
New
(never
used)
in
the
box
from
manufacturer,
TUV
standard
This
unit
comes
with
8
digits
Green
display
and
enunciators
5
digit
frequency
display
3
digit
voltage
output
display
Continuous
adjustment
of
amplitude,
Frequency
and
pulse
duty
cycle
Contents
included
- Brand
New
Function
Signal
Generator
- Power
cable
(Australian
plug)
- BNC
Cables
- Manual
Output
Frequency
Range
(Seven
ranges)
0.2
Hz
~
2
Hz
~
20
Hz
~
200
Hz
~
2
KHz
~
20
KHz
~
200
KHz
~
2
MHz
Signal
waveform
(5
types)
Sine,
Square,
Rectangle,
Saw
tooth,
and
Triangle
waves
Output
signal
impedance:
50
ohm
Output
signal
amplitude
(peak
~
peak
value)
-
Non-attenuate
2Vp-p
-
20Vp-p
+/-
20%
continuously
adjustable
-
Attenuate
20
dB
0.2Vp-p
-
2.0Vp-p
+/-
20%
continuously
adjustable
- Attenuate
40
dB
20mVp-p
-
200mVp-p
+/-
20%
continuously
adjustable
-
The
figures
are
tested
with
load
1
M
ohm.
The
amplitude
of
output
signal
will
be
half
of
the
value
with
50
ohm
Function
output
symmetry
adjust
scope
20%
~
80%
(+/-
10%)
Output
signal
features
-
Sine
wave
distortion:
<
2%
-
Triangle
wave
linear:
99%
(10
~
90
%
of
output
amplitude)
-
Square
wave
rise
edge
time;
less
than
100ns
(10
~
90
%
of
output
amplitude)
-
Square
wave
fall
edge
time;
less
than
100ns
(10
~
90
%
of
output
amplitude)
-
Square
wave
rise
and
fall
pulse
less
than
or
equal
to
5%
Vo
(50
ohm
load)
-
The
test
condition
10
KHz,
5V
p-p,
warm
up
for
20m
Output
signal
frequency
stability
Less
than
+/-
0.1%
min
Amplitude
display
(Only
for
50
ohm
load.
At
1M
load,
the
real
output
amplitude
is
double
of
the
displaying
value):
-
Display
digits:
2/3
digits
(decimal
point
automatic
select
place).
-
Display
units
Vp-p
or
mVp-p.
-
Display
error:
Vo
10%
+/-
1d
(Vo
refers
to
the
true
value
of
output
signal)
-
Resolution:
non-attenuate
0.2Vp-p
20dB
attenuate:
20mVp-p
40dB
attenuate:
2mVp-p
Frequency
display
Display
range:
0.2
Hz
-
2
MHz
Display
effective
digit:
four
of
five
digits.
Measurement
errors:
0.5%
Time
base:
frequency:
12MHz
Frequency
stability:
+/-
5x10-5
Power:
110V/240V
50HZ
Power
consume:
15
W
Dimension:
270
mm
X
215
mm
X
100
mm
Working
temperature:
0
~40
degree
C
